產品描述：
超結 MOSFET
| Part Number | VDS (V) | ID (A) 25℃ | PD(W) 25℃ | RDS(ON)(mΩ) (VGS=10V)（Max） | Qg(nC)(VGS=10V) （Typ） | VGS(V) | VGS(th)(V) （Typ） | Package |
|---|---|---|---|---|---|---|---|---|
| RMC65R280FD | 650 | 15 | 32 | 280 | 15.6 | 30 | 3.5 | TO-220F |
| RMC65R1K0SN | 650 | 4 | 30 | 1000 | 9.1 | 30 | 3.3 | TO-220F |
| RMG65R1K0SN | 650 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-251 |
| RMA65R1K0SN | 650 | 4 | 37 | 1000 | 9.1 | 30 | 3.3 | TO-252 |

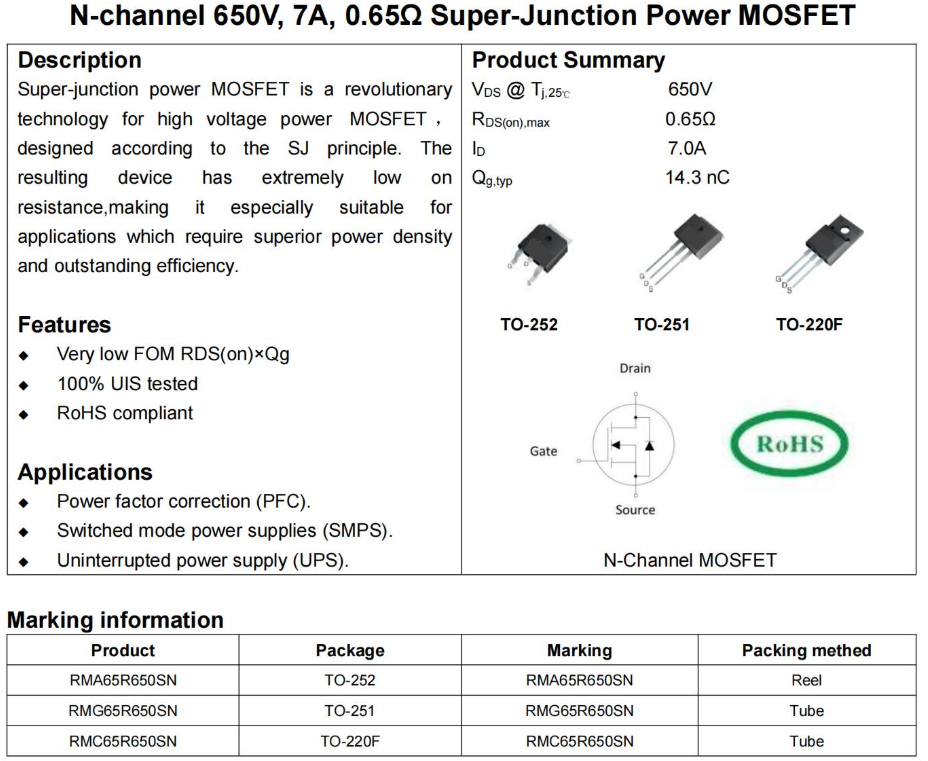

| RMC65R650SN | 650 | 7 | 32 | 650 | 13.3 | 30 | 3.3 | TO-220F |
| RMP65R650SN | 650 | 7 | 6.9 | 650 | 13.3 | 30 | 3.3 | SOT-223 |
| RMG65R650SN | 650 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-251 |
| RMD65R650SN | 650 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | PDFN5*6 |
| RMA65R650SN | 650 | 7 | 63 | 650 | 13.3 | 30 | 3.3 | TO-252 |
| RMC65R600BN | 650 | 7 | 32 | 600 | 13.3 | 30 | 3 | TO-220F |
| RMG65R600BN | 650 | 7 | 63 | 600 | 13.3 | 30 | 3 | TO-251 |
| RMA65R600BN | 650 | 7 | 63 | 600 | 13.3 | 30 | 3 | TO-252 |
| RMC65R380SN | 650 | 11 | 33 | 380 | 19.2 | 30 | 3.3 | TO-220F |
| RMK65R380SN | 650 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | PDFN8*8 |
| RME65R380SN | 650 | 11 | 125 | 380 | 19.2 | 30 | 3.3 | TO-263 |
| RMD65R380SN | 650 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | PDFN5*6 |
| RMA65R380SN | 650 | 11 | 118 | 380 | 19.2 | 30 | 3.3 | TO-252 |
| RMC65R340FD | 650 | 15 | 32 | 340 | 15.6 | 30 | 3.5 | TO-220F |
| RMC65R280SN | 650 | 15 | 34 | 280 | 26 | 30 | 3.3 | TO-220F |
| RMK65R280SN | 650 | 15 | 132 | 280 | 26 | 30 | 3.3 | PDFN8*8 |
| RME65R280SN | 650 | 15 | 158 | 280 | 26 | 30 | 3.3 | TO-263 |
| RMD65R280SN | 650 | 15 | 132 | 280 | 26 | 30 | 3.3 | PDFN5*6 |
| RMA65R280SN | 650 | 15 | 132 | 280 | 26 | 30 | 3.3 | TO-252 |
| RMF65R190SF | 650 | 20 | 202 | 190 | 38.2 | 30 | 3.3 | TO-247 |
| RMK65R190SF | 650 | 20 | 202 | 190 | 38.2 | 30 | 3.3 | PDFN8*8 |
| RMC65R190SF | 650 | 20 | 34 | 190 | 38.2 | 30 | 3.3 | TO-220F |
| RME65R190SF | 650 | 20 | 202 | 190 | 38.2 | 30 | 3.3 | TO-263 |
| RMF65R099SF | 650 | 36 | 304.8 | 99 | 81 | 30 | 3.5 | TO-247 |
| RMC65R099SF | 650 | 36 | 35 | 99 | 81 | 30 | 3.5 | TO-220F |
| RMF65R038SF | 650 | 70 | 694 | 38 | 191 | 30 | 4 | TO-247 |
